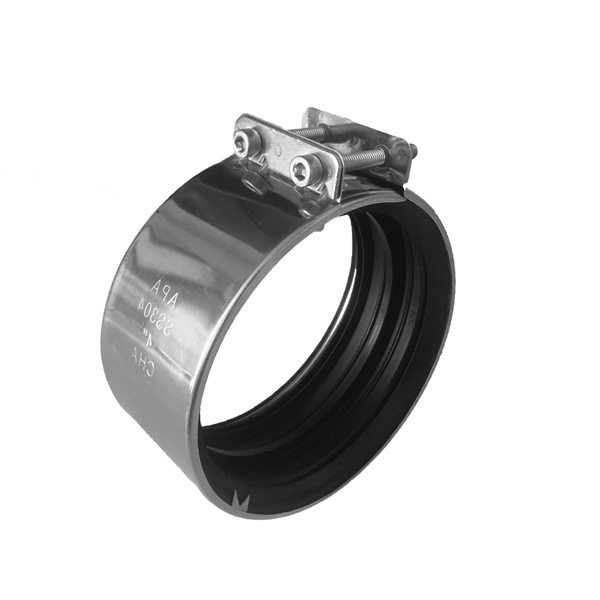

TYPE CHA COUPLING
Technical Data:
Hydrostatic test pressure
DN 50 to 200: 0.5 bar
In accordance with EN 877
Band material: AISI 304 or AISI 316
Bolt: AISI 304 or AISI 316
Rubber Gasket: EPDM
| Pipe Size |
≈A（mm） |
≈B（mm） |
Bolt（mm） |
| DN50 |
58.0 |
68 |
M6*50 |
| DN75 |
58.0 |
96 |
M6*50 |
| DN100 |
58.0 |
120 |
M6*50 |
| DN125 |
58.0 |
140 |
M6*50 |
| DN150 |
72.0 |
168 |
M6*50 |
| DN200 |
84.0 |
226 |
M6*50 |
